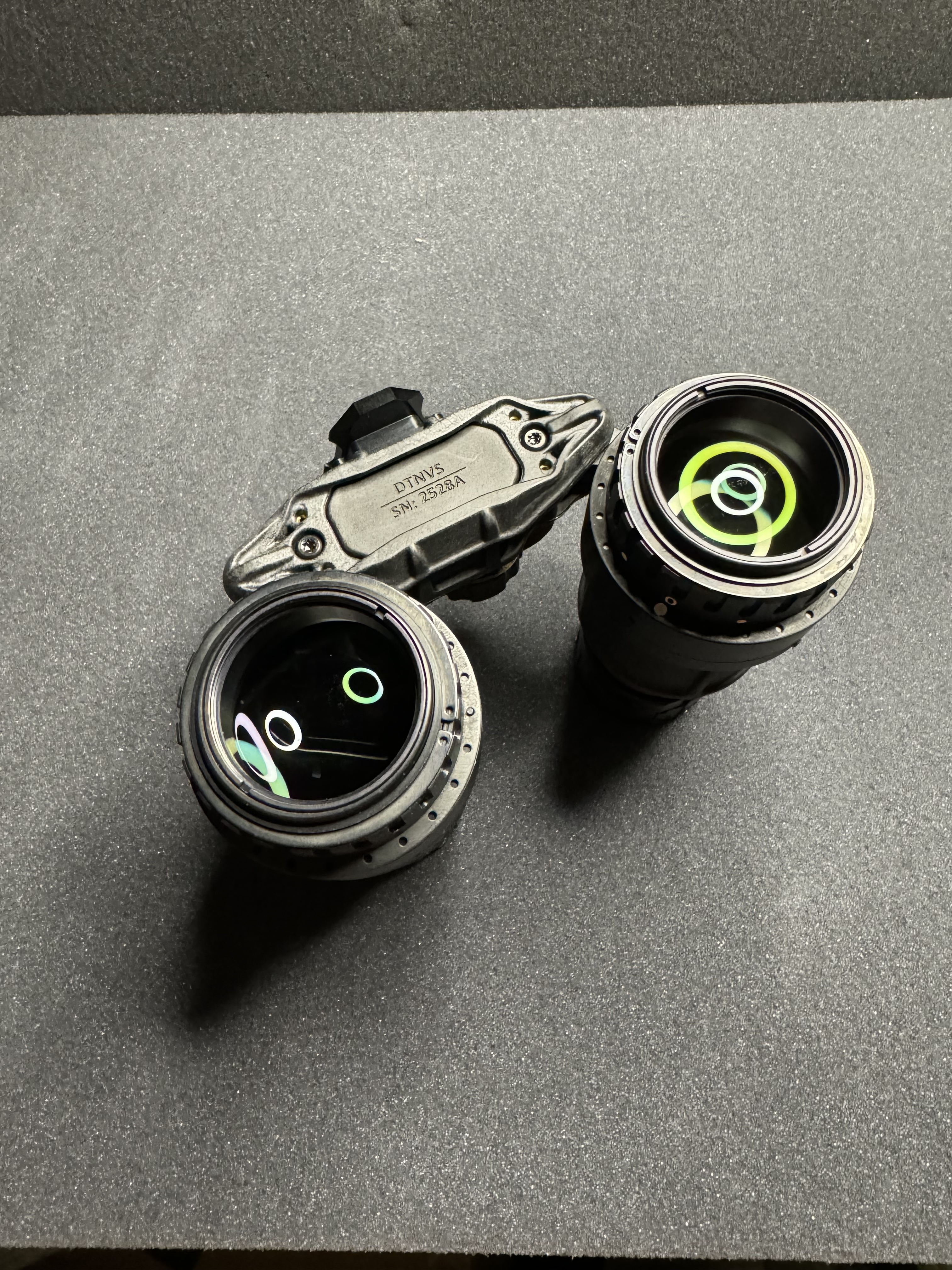

ACTINBLACK DTNVS

The DTNVS binocular has a full feature set that includes both individual sideways ON/OFF for each eyepiece and Flip-Up ON/OFF capabilities when folded up preventing backsplash on the helmet. To enhance the DTNVS features it incorporates built-in IR LED for close quarter operations with separate IR-ON indicators and low battery indicators in the field of view.

Furthermore, we have added Interpupillary (IPD), to allow a quick positioning of the eyepiece when folded down from a Flip-Up position.

We’ve eliminated the external battery port – Why? The DTNVS uses standard CR123A batteries as commonly found in lasers or flashlights. A single battery provides over 25 hours run time. However, as the pods shut off when flipped up and therefore halving the power consumption, most users report up to 35 hours on a single battery.

Finish
Matte Black, Corrosion Resistant

Fiber re-enforced polycarbonate body

Capability
Flip-Up On-Off

Side Flip-Up On-Off

Built-in IR LED with “IR-on” indicator in FOV

Low battery indicator in FOV



Waterproof: 20m (66ft) for 2 hours

Corrosion Resistance against salt water

Magnification
1x

Lens System
F/1.2

FOV
40°

Range of Focus
0.25 m to ∞

Diopter Adjustment
+2 to -6 dpt

Infrared Illuminator
Yes

Power Supply
1x CR123A

Battery Life
Approx. 25 Hours at Room Temperature (CR123A)

Dimensions
76 x 105 x 111 mm

Weight
441-510g, depending on optics and tubes

Standards
Exceeding MIL-STD-810G
